Features in Johnson Medical Operating Theatre

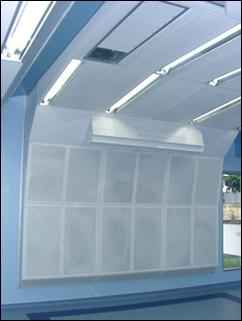

Unique double-wall ventilation exhaust system reduces airflow and turbulence to enhance the cooling effect of the entire wall in hot climates.





Johnson Medical Guided AirflowTM Ventilation System provides a 3 directional sterile airflow that can efficiently control the Colony Forming Unit down to 0.5 cfu/m3 within the wound area. The guided air generates a low air change rate of 20 per hour. This ventilation system successfully produces a clean environment covering a wide area in the operating theatre.



































Curved ceiling extends the reach of sterile air provided by the Guided AirflowTM ventilation system.

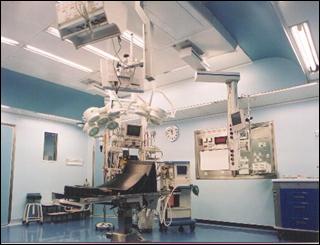

Patented ceiling fixture for Johnson Medical’s Aneasthetic Equipment (Dry) & Fluid (Wet) Pendants and Surgeon Pendant. It caters to all suspended equipment in the OT including surgical lights and microscopes, with add-on mountings to allow expansion of surgical techniques.

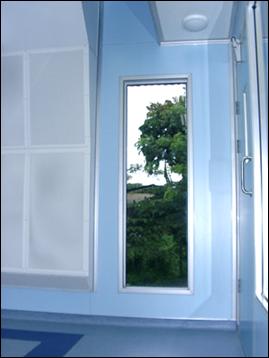

Triple-glazed one-way window allows filtered natural light in the OT to reduce the feeling of claustrophobia or work-stress after long hours. Designed with a vacuum tap to eliminate moisture and condensation in tropical climate.

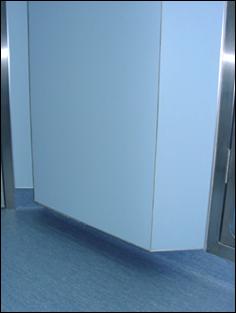

Scratch resistant, anti-bacterial and high-density laminated panels for all walls and doors. High quality, low maintenance homogenous vinyl flooring, polyurethane reinforced plus 100mm skirting is used throughout to ease cleaning.

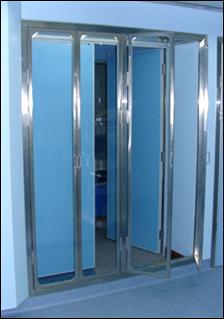

“Pass-through” cabinet is an innovative design of Johnson Medical. The unique design of the cabinet allows high-pressure sterile air to flow from the top to the bottom of the cabinet in order to maintain sterility of the surgical equipment, which is kept in the suture cabinet.



















High-density laminated doors integrated with a special hydraulic locking system to ensure proper closing. Optional Elbow Switch Electric Door is available.





Stainless   steel    scrub   basin   with unique non-drip bowl and sinks minimize splashing on the floor or wall; while deep bowl, sloping bottom and curve support eliminate wet floors caused by elbow drip.











Surgical control panel with glass door on switches side come with stainless steel frame. Type of components installed will be based on customer’s requirement with a basic of X-ray viewer, medical alarm clock etc.
